RPB PX5 PAPR

The New Standard in Powered Air Purifying Respirators

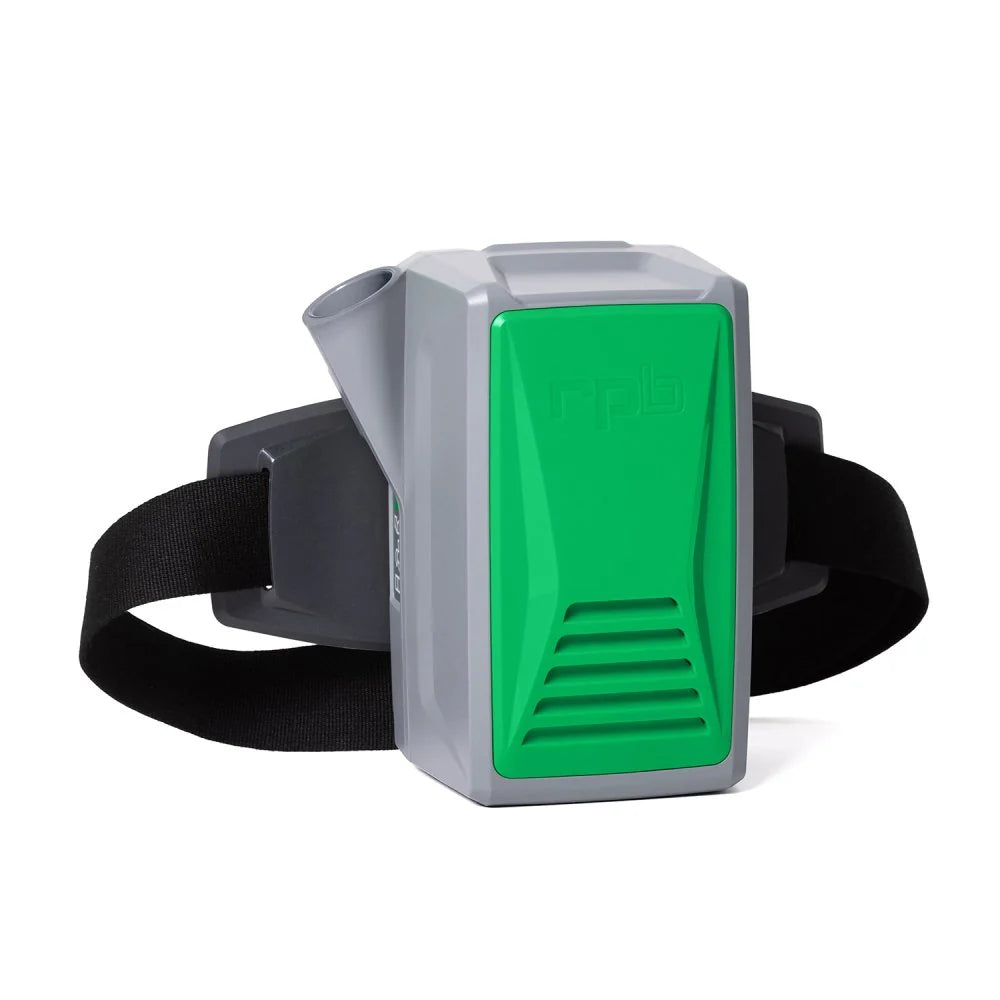

The RPB® PX5® is a battery powered air purifying respirator blower unit which draws in contaminated air from the users immediate vicinity, passing it through internal filters, and supplying the filtered air to an approved RPB® loose fitting respirator head top.

1. HEPA filter with a minimum efficiency of 99.97% 0.12 micron.
2. Built in audible, visual and physical safety alarms alert operators when filters need to be replaced, or the airflow is obstructed.
3. Tested to IP 65 for water and dust ingress while in operation.


APPLICATIONS INCLUDE: Spray painting, coating, powder coating, pharmaceutical manufacturing, metal fabrication, welding, and grinding, waste management. And many more!

Made in the USA.

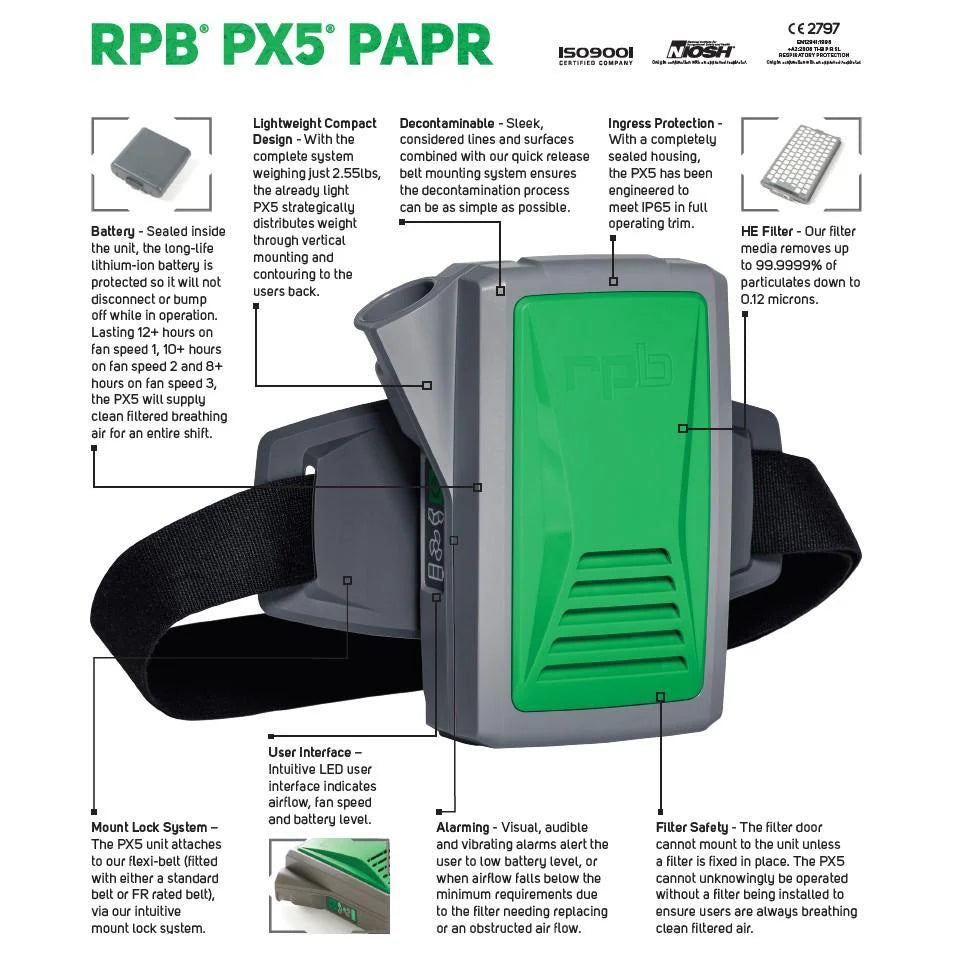

Features

1. Lightweight Compact Design - With the complete system weighing just 2.55lbs, the already light PX5 strategically distributes weight through vertical mounting and contouring to the users back.
2. De-contaminable - Sleek, considered lines and surfaces combined with a quick release belt mounting system ensures the decontamination process can be as simple as possible.
3. Ingress Protection - With a completely sealed housing, the PX5 has been engineered to meet IP65 in full operating trim.
4. Battery - Sealed inside the unit, the long-life lithium-ion battery is protected so it will not disconnect or bump off while in operation. Lasting 12+ hours on fan speed 1, 10+ hours on fan speed 2 and 8+ hours on fan speed 3, the PX5 will supply clean filtered breathing air for an entire shift.
5. High Efficiency (HE) Filter - The filter media removes up to 99.97% of particulates down to 0.12 microns.
6. Mount Lock System – The PX5 unit attaches to the flexi-belt (fitted with either a standard belt or FR rated belt), via our intuitive mount lock system.

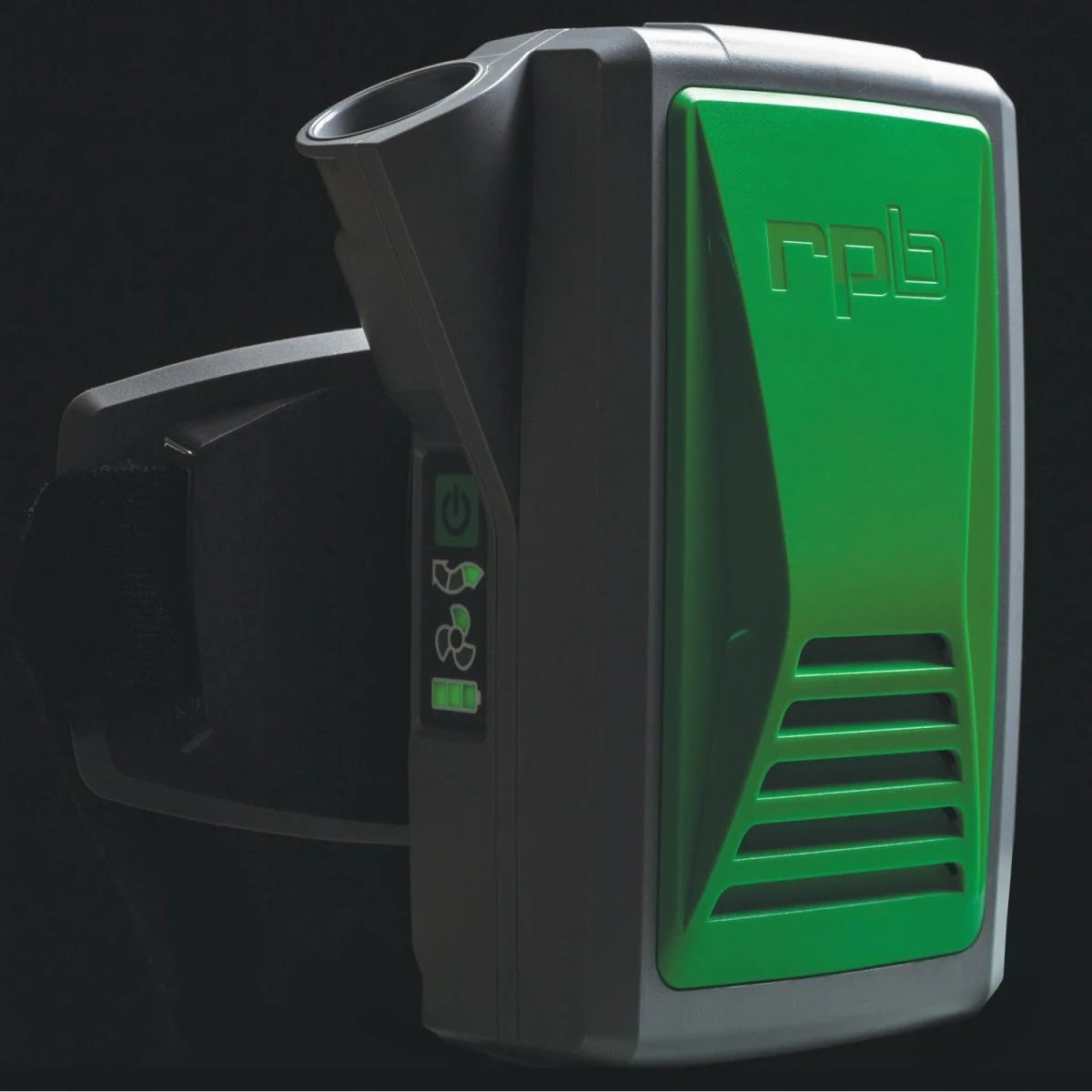

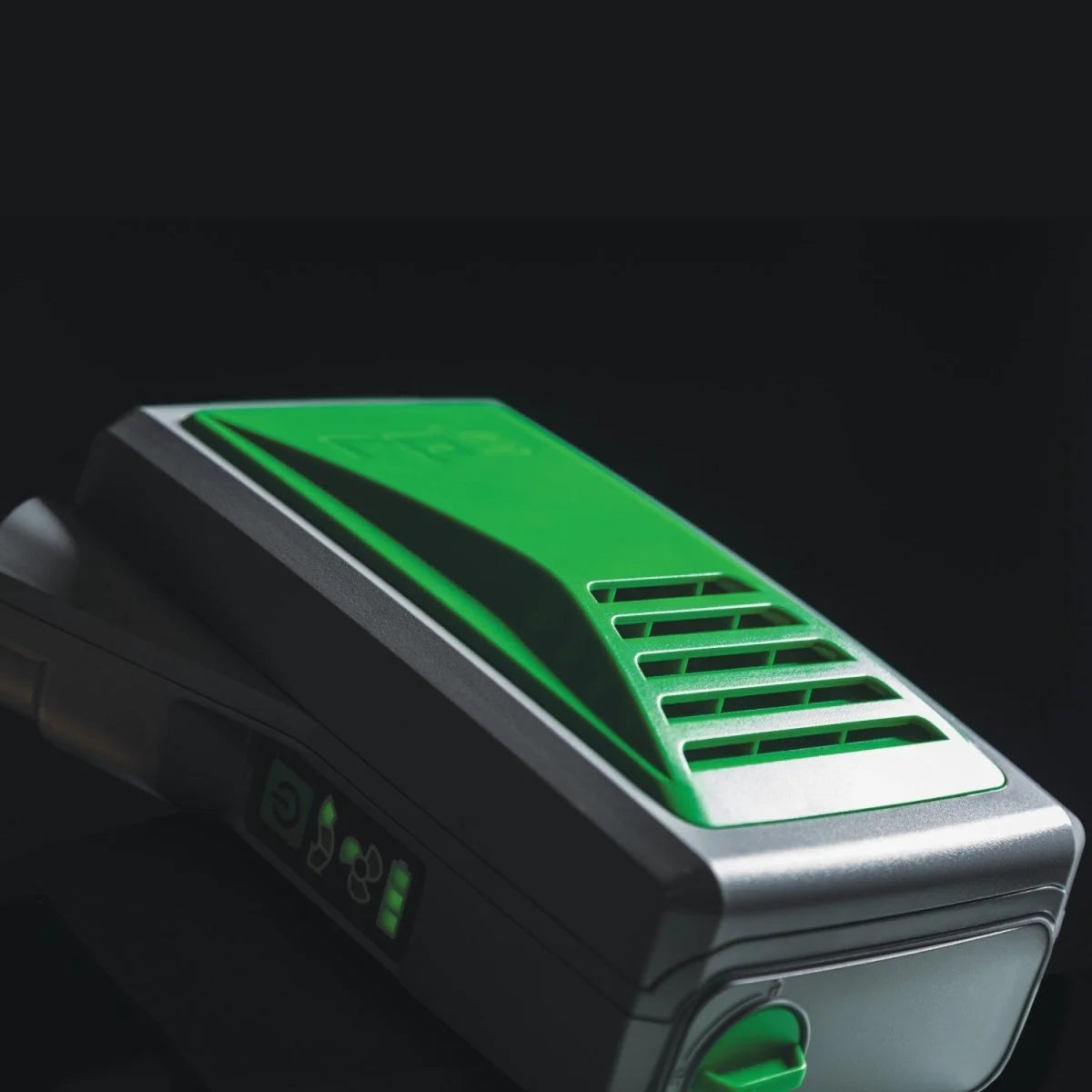

7. User Interface – Intuitive LED user interface indicates airflow, fan speed and battery level.
8. Alarming - Visual, audible and vibrating alarms alert the user to low battery level, or when airflow falls below the minimum requirements due to the filter needing replacing or an obstructed air flow.
9. Filter Safety - The filter door cannot mount to the unit unless a filter is fixed in place. The PX5 cannot unknowingly be operated without a filter being installed to ensure users are always breathing clean filtered air.

Specifications

PX5 PAPR Replaces PX4 Air PAPR from RPB.

Air Flow
Speed 1: Greater than 6cfm (170slpm)
Speed 2: Greater than 7.4cfm (210slpm)
Speed 3: Greater than 8.4cfm (240slpm)

Operating Noise
Speed 1: 57dBA at 12” (305mm) from the unit
Speed 2: 59dBA at 12” (305mm) from the unit
Speed 3: 62dBA at 12” (305mm) from the unit

Alarm Volume
85dBA at 4” (104mm)

Battery Charging
5 hours
300+ charge cycles with battery life greater than
80% of original

Power supply
Battery: Rechargeable Lithium Ion battery.
Charging: 110-240v 50-60Hz AC. Power cords available
include US, UK, EU, AU/NZ.

Battery Run Times*
HEPA:
Speed 1: 10+ hours
Speed 2: 7+ hours
Speed 3: 6+ hours
*Run times can vary dependent on age of filter.

Dimensions
9.1in (231mm) Height
6.9in (174mm) Width
2.6in (65mm) Depth*
*Just PAPR unit without belt.

With standard belt, weighs 2.5 lbs/1.13kg.

Water and Dust Ingress Protection rating
Tested to IP 65 with filter and door in place, with the breathing
tube connected.

Operating Temperature
-4˚F to 122˚F (-20˚C to 50˚C)
If unit is operated outside of this temperature range for
10 minutes battery alarm will activate.
